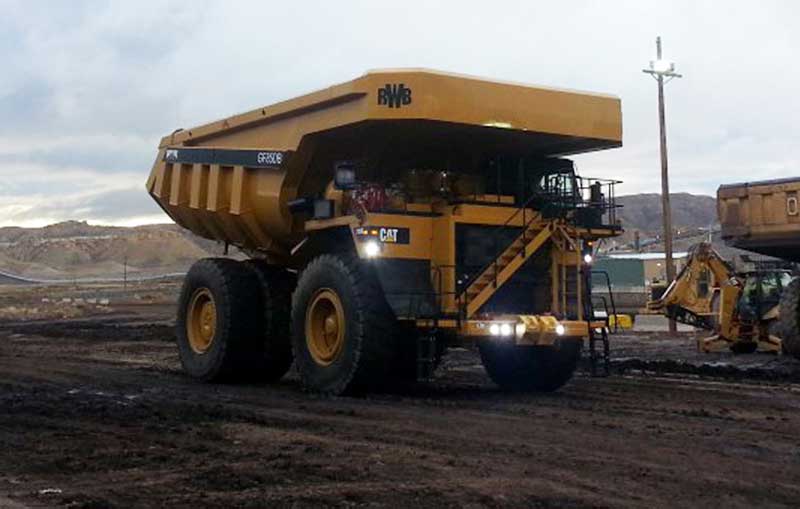

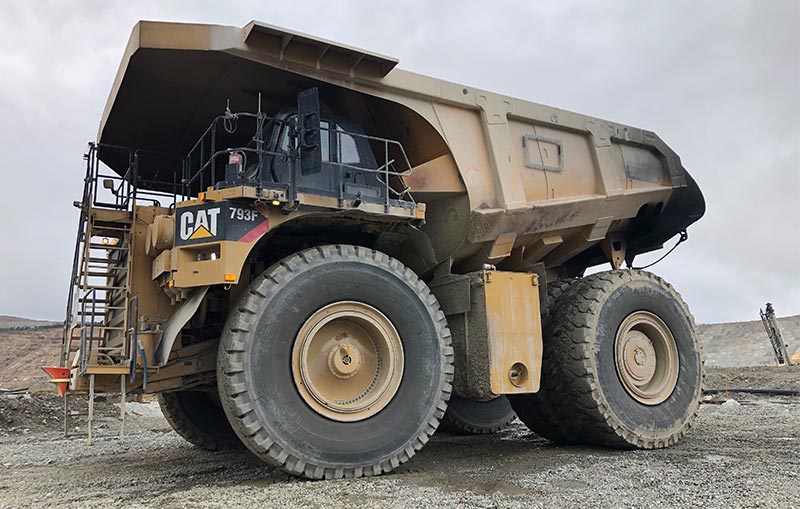

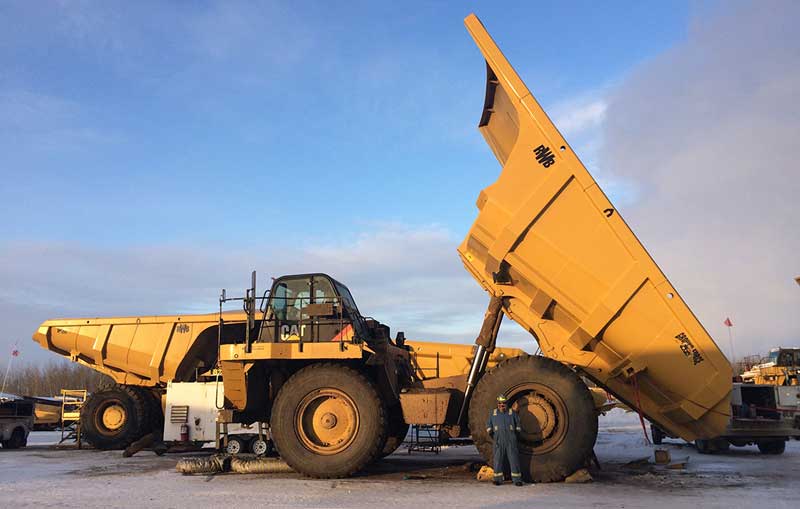

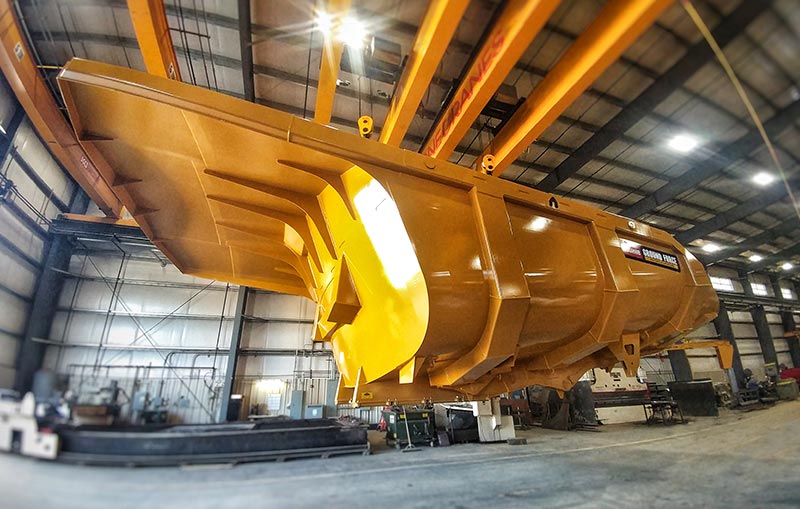

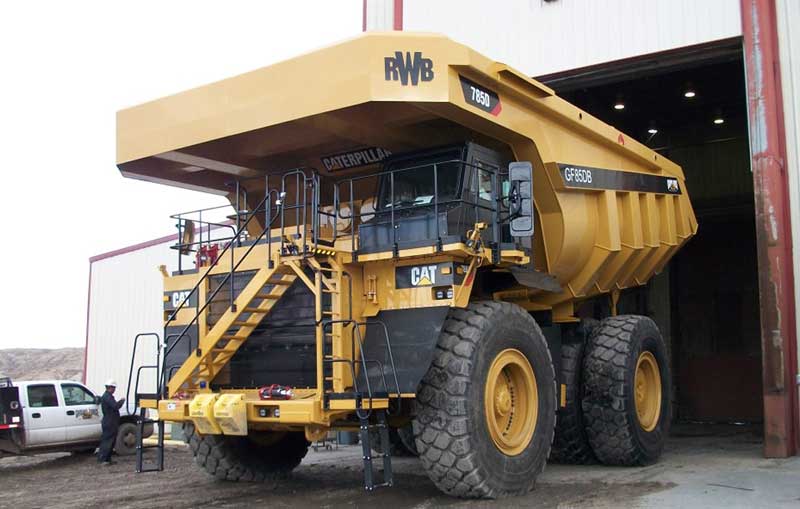

Dump Bodies
FMS Group partners with Ground Force to deliver Dump Bodies engineered for maximum productivity and durability in the toughest mining applications. Featuring an innovative overlap shell design, these bodies reduce carry-back, speed up discharge, and extend service life.
Alongside supply, FMS Group provides comprehensive servicing and genuine parts support, ensuring your dump bodies continue to perform reliably and deliver long-term value to your operation.
Capacity
40 – 400 ton (36 – 363 metric ton)
Discover the
Benefits
INCREASED PAYLOAD:
Lightweight designs provide increased production and bottom-line profitability, our strategic engineering is proven and allows for peak performance.
REDUCED CARRY BACK:
Engineered with an overlap shell design, lessening the amount of external structural support without compromising strength. The overlap design allows for quick release of material reducing carryback.
LOCAL DEALER SUPPORT:
Supported by FMS Group service expertise and a complete supply of genuine parts for maximum reliability and uptime.
TANK SPECIFICATIONS
| Innovative semi-elliptical dump bed design for maximum strength and quick material release | Purpose designed & manufactured body for maximum payload | Designed to minimise visual interference during operation | Body constructed of 450 – 500 bhn material | Sub-frame and bolsters constructed of 100 ksi material |
| Reinforced and “dished shape” front head for strength & protection | Engineered with the lowest possible center of gravity | Reduced load impact on operator | Heated bodies available for cold weather applications | Rock ejector brackets |
| Class | Model |
|---|---|
| 40 T (36 mt) | 40RWB |
| 60 T (55 mt) | 60RWB |
| 70 T (63.5 mt) | 70RWB |
| 100 T (90 mt) | 100RWB |
| 150 T (134 mt) | 150RWB |
| 200 T (177 mt) | 200RWB |
| 250 T (227 mt) | 250RWB |
| 320 T (290 mt) | 320RWB |
| 400 T (362 mt) | 400RWB |
*Capacities will vary depending on chassis size, weight distribution, and material density. All Ground Force Worldwide RWB Dump Bodies offer a variety of configurations and liner packages with the benefits of being ultra-lightweight in design. Designs for all chassis on the market today.
CUTTING-EDGE FEATURES & BENEFITS
| Increased payload – Lightweight design allows for more payload | Resists carry-back – Less tire wear / more material hauled | Reduces spill rock – Less cleanup on haul roads and dumps |
| Quick material discharge – Faster cycle times | Centered load (due to semi-elliptical design) | Design is operator friendly with large target area |
Get more details – contact FMS Group today.
