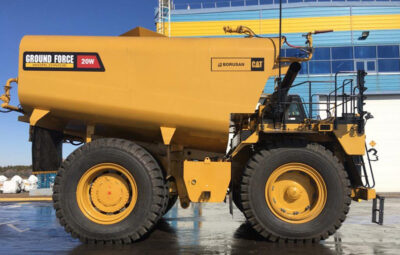

Rigid Frame Water
Trucks
In partnership with Ground Force, FMS supplies Rigid Frame Water Trucks built for the biggest challenges in mining—whether it’s dust suppression, fire-fighting, or large-scale water management. Designed with a dual-radius baffled tank and internal endoskeleton, these trucks deliver stability, safety, and long-term durability, even in the harshest conditions. The advanced Water Control System (WCS) ensures simple in-cab digital controls, remote operation, and precise water delivery.
At FMS, we go beyond supply by offering comprehensive servicing and a full range of genuine parts, ensuring your Ground Force water trucks continue performing reliably and keeping your operation running at full capacity.
Capacity
9,000 – 62,000 gallons (34,068 – 234,695 liters)
Discover the
Benefits
MAXIMISED CAPACITY:
A robust design engineered to carry large volumes of water; these bodies offer maximum capacities with long-term durability.
SAFE AND DURABLE:
Engineered with strategic internal baffling, dual-radius semi-elliptical shape, and optimal center of gravity, these bodies provide the strength you need while putting safety first.
INTERCHANGEABILITY:
These bodies are designed for interchangeability with the Ground Force Rock Spreader bodies. With plug-and-play connections, switching from water season to road maintenance has never been easier.
LOCAL DEALER SUPPORT:
Backed by OEM Mining machine support for enhanced reliability and service.
TANK SPECIFICATIONS
| Water Capacity: 9,000 – 62,000 gal (34,068 – 243,695 L) |
Built for heavy-duty mining applications |
Dual-radius elliptical design |
Endo-skeleton, designed with structural I-beams for extended life and stability | Full baffled; longitudinal and transverse |
| Custom engineered tub- surge control system |
Sump with drain for cleanout |
Sealed weatherproof wiring |
LED tail, stop and turn lights |
| Class | Capacity | Model |
|---|---|---|
| 40 T (36 mt) | 9,000 G (34,068 L) | 9W |
| 50 T (45 mt) | 10,000 G (37,854 L) | 10W |
| 60 T (54 mt) | 12,000 – 13,000 G (45,424 – 49,210 L) | 12W / 13W |
| 70 T (63 mt) | 15,000 G (56,781 L) | 15W |
| 100 T (90 mt) | 18,000 – 20,000 G (68,137 – 75,708 L) | 18W / 20W |
| 150 T (136 mt) | 25,000 – 32,000 G (94,635 L – 121,133 L) | 25W / 32W |
| 200 T (181 mt) | 35,000 – 40,000 G (132,489 L – 151,416 L) | 35W / 40W |
| 240 T (217 mt) | 45,000 – 52,000 G (170,343 L – 196,841 L) | 45W / 52W |
| 400 T (363 mt) | 60,000 – 62,000 G (227,124 L – 234,695 L) | 60W / 62W |
*Designs for all chassis on the market today.
ENHANCE OPERATOR EASE AND SAFETY
| Ground Force Water Control System (WCS) |
Designed to achieve lowest center of gravity |
Manway with safety grate |
| Ladder with safety handrails |
Anti-skid top walkway PPE tie-off |
FMS Group Field Service & Guidance Available |
Get more details – contact FMS Group today.
